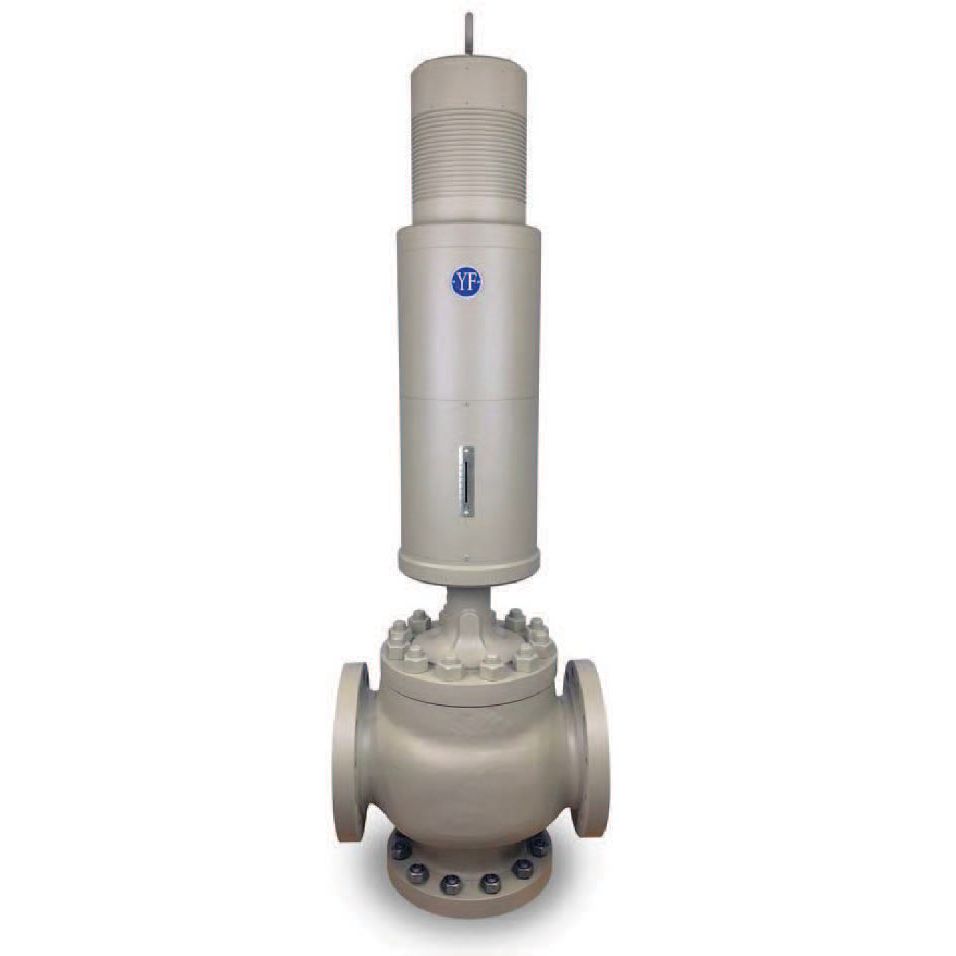

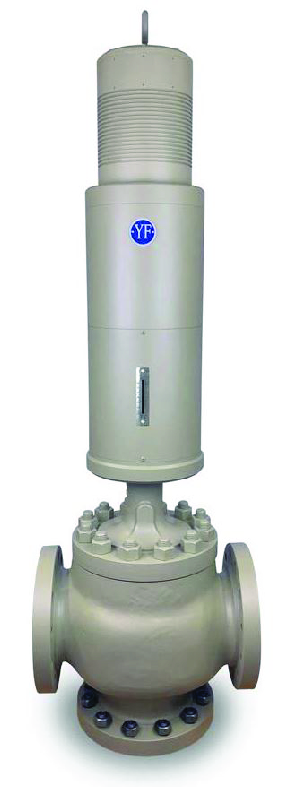

YF 8662 Series Gas Splitter / Transfer Valve
YF’s proven line of Electro-Mechanical Actuators (EMA) is designed to be a drop-in replacement of OEM supplied hydraulic actuators used on DLN splitter and transfer valves. YF’s Digital Motor Controller (DMC) accepts the existing -8mA to +8mA servo commands, eliminating command logic changes to your control system: Same Commands – Same Response – Same Flow
| Command |
4-20 mA Position or Velocity -8 to +8 mA Triple Redundant Velocity |
| Independent Feedback (Optional) | Up to 2 LVDTs |
| Ambient Temperature Range | -4°F to 212°F (-20°C to 100°C ) |
| Environmental | MIL-STD-810 – Shock and Vibration |
| Ingress Protection | IP65 for EMA, IP54 for LVDTs |
| Mean Time Between Service -Actuator | 96,000 Hours |
| Visual Position Indicator | Yes |
| Total EMA Only Weight (lbs.) | 128 |
| Certifications | Class 1 Div 2, Group B, C & D, T3 |
| Attachment | Size |
|---|---|
 8662 Series Electric Valve Actuator Brochure | 44.07 KB |
